| What | Winding details, geometry |
Maker
|
Remarks
|
Inv.Nr.
|
Where
|
| 3-phase 50/60Hz | power transformers | ||||
| Three phase transformer with rectifier | 3x400VAC-->24VDC 16A | Riedel | ri | TR0001000 | ra-lkk |
| Three phase transformer with rectifier | 400VAC 500VA 24VDC 25A | Lütze | ri | TR0002000 | ra-lkk |
| Three phase transformer | 400VAC 500VA to 172VAC 1.7A | SAWA | ri | TR0003000 | ga |
| Three phase transformer | Three phase 400VAC to single phase 230VAC 26A separation transformer with metal enclosure | Huber | ri | TR0004000 | al |
| Three phase transformer | Type 2x3x18 400 VAC to 18VAC symmetric (for 24VDC or 48VDC rectifier) | Besson | ce | TR0005000 | sh2 |
| Three phase transformer | Type 3x18 400 VAC to 18VAC (for 24VDC rectifier) | Siemens | ce | TR0006000 | sh2 |
| Three phase transformer | 400 VAC to 38VAC center tap (for 24/48 VDC rectifier) | fsz red power | ce | TR0007000 | sh2 |
| Three phase transformer with double secondary and double rectifier | 400VAC to 24DC 5A and 24DC 9A (48 VDCpossible) | Jura Elektrik | ce - ex chevry switchboard | TR0008000 | al-k2 |
| Three phase transformer | 400VAC 5KVA to 400VAC three phase separation transformer with metal enclosure | Zellweger | star delta | TR0008100 | 680Fu |
| Three phase transformer | 400VAC 3KVA to 230VAC three phase separation transformer | Ctyroky | Yd | TR0008200 | al |
| Three phase transformer | 400VAC 3KVA to 230VAC three phase separation transformer | Ctyroky | Yd | TR0008201 | al |
| single-phase 50/60Hz | power transformers | ||||
| Single phase transformer | 220VAC 1KVA to 220VAC single phase separation transformer inside distribution box for SE-430 radio set | Bürkli | TR0008600 | 680Fu | |
| Single phase transformer in box | Type RSN1000 380/400/420VAC 1kVA to 230VAC | TR0009000 | al | ||
| Single phase transformer | Type RSTN500 380/400/420VAC 500VA to 230VAC | Riedel | TR0010000 | sh2 | |
| Single phase transformer | Type 2201212 220VAC 2x12VAC 2.1A | Wagner&Grimm | TR0011000 | sh2 | |
| Single phase transformer | 230VAC 300VA to 110VAC | TR0012000 | al |
||
| Single phase transformer with rectifier | 230VAC to 42 VDC 4A, also 19VAC 1A | TR0013000 | al |
||
| Single phase transformer | Single phase encapsulated transformer Type AME7G 230VAC 300VA to 2x220VACsymm, plus filament 6.3VAC 6A, no second filament, probably power transformer of an AME receiver | dpt01 | TR0013500 | al |
|

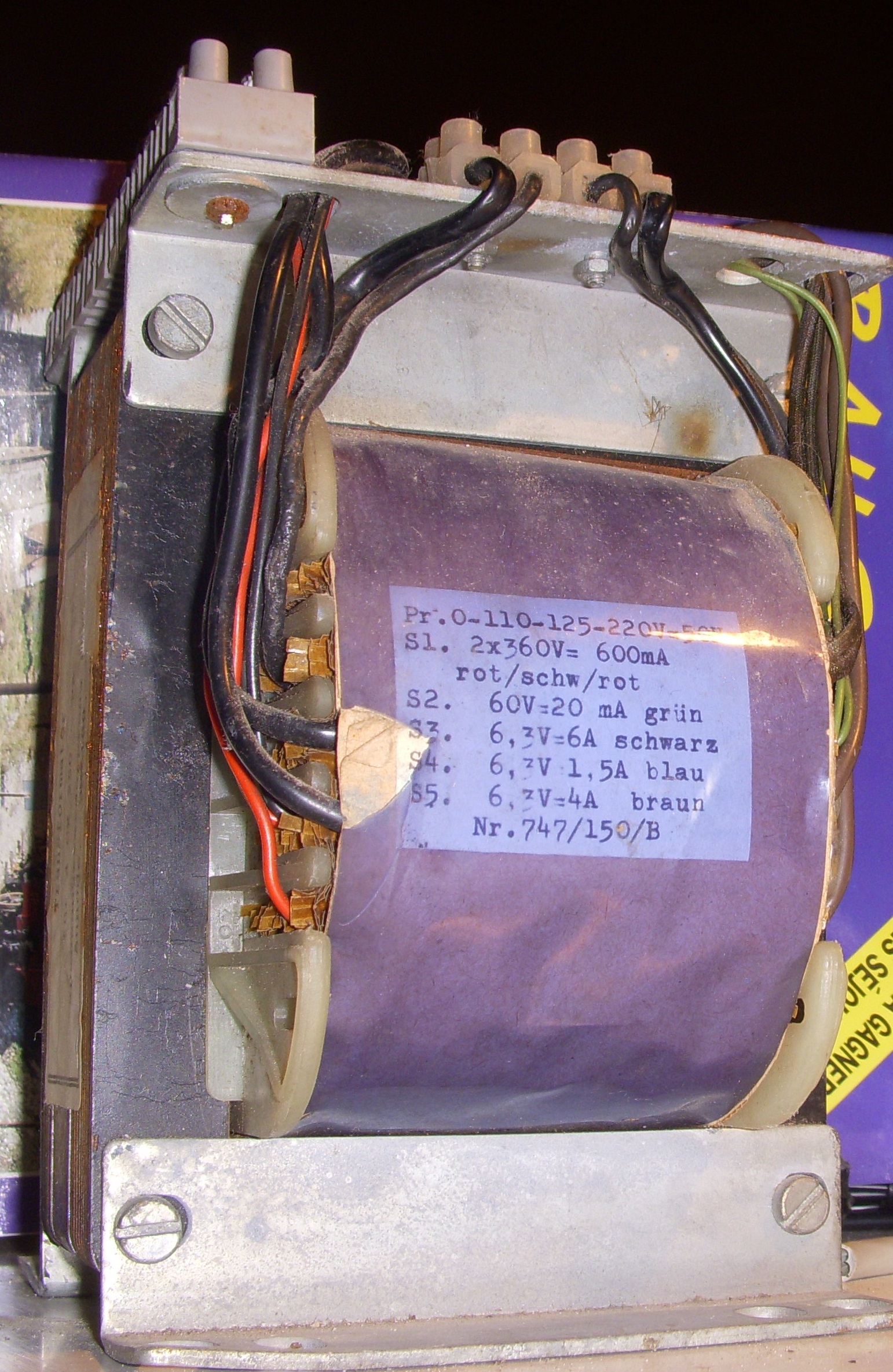

| Single phase transformer | Type 4CX250 230VAC 600VA to 2x360VACsymm 600mA (prob. DC rectifier output current), plus filament 6.3VAC 6A, second and third filament 6VAC | eb | TR0014000 | al |
|
|
Toroïdal single phase transformer for audio amp |
230VAC 600VA to 235VAC, plus filament 6.3VAC 6A, second filament 6.3VAC CT for preamplifier stages, 20 VAC 10mA for bias supply | eb | TR0015000 | sh2 | |
|
Toroïdal single phase transformer |
230VAC 200VA to 2x115 VAC | eb | TR0016000 | al |
|
|
Toroïdal single phase transformer |
230VAC 250VA to 2x115 VAC | eb | TR0017000 | mecalac-pr | |
|
Toroïdal single phase transformer |
230VAC 4kVA to 45VAC 42A and 205VAC 5A | tr - 10kg | TR0018000 | ra-lkk | |
|
Toroïdal single phase transformer |
230VAC 4kVA to 45VAC 42A and 205VAC 5A | tr - 10kg | TR0019000 | ra-lkk | |
|
Toroïdal single phase transformer |
230VAC 4kVA to 45VAC 42A and 205VAC 5A | tr - 10kg | TR0020000 | ra-lkk | |
|
Toroïdal single phase transformer |
230VAC 4kVA to 45VAC 42A and 205VAC 5A | tr - 10kg | TR0021000 | ra-lkk | |
|
Toroïdal single phase transformer |
230VAC 4kVA to 45VAC 42A and 205VAC 5A | tr - 10kg | TR0022000 | ra-lkk | |
|
Toroïdal single phase transformer |
230VAC 4kVA to 45VAC 42A and 205VAC 5A | tr - 10kg | TR0023000 | ra-lkk | |
|
Toroïdal single phase transformer |
230VAC 4kVA to 45VAC 42A and 205VAC 5A | tr - 10kg | TR0024000 | ra-lkk | |
| Single phase transformer | Type YL1440 230VAC 4V 52A center tap - filament transformer | Besson | fsz | TR0025000 | sh2 |
| Single phase transformer | Type KU130 220VAC 24VAC 12.5A | Moser Glaser | ri | TR0026000 | sh2 |
| Single phase transformer | Collins 30-S1 anode transformer 117/234VAC 5500VAC C.T. to be rewound | Collins | irl | TR0027000 | sh2 |
| Single phase transformer | 230VAC 240VA to 2 x 24V tbc. | Wagner&Grimm | fl | TR0028000 | ra-lkk |
| Single phase transformer | 230VAC 240VA to 2-4-16-24V 9.2A | Wagner&Grimm | Jungi | TR0029000 | ra-lkk |
| Single phase transformer | US filament transformer 117VAC 6.3VAC multiple. Used for T-368 speech ampl. | Stancor | ant rad sup | TR0030000 | sh1 |
| Single phase transformer | US filament transformer 117VAC 6.3VAC multiple | Stancor | ant rad sup | TR0031000 | sh2 |
| Single phase transformer | HV-transformer for BC610 (part of radio station SCR-399) made by Stancor 117VAC to 2200VAC | Stancor | BC610E | TR0032000 | ra-lkk |
| Single phase transformer | Transformer with skewed three phase output via capacitor 3 x 0-9 Volts, for operating three phase DISTLER model trains, new with orig. box | DISTLER | fm | TR0033000 | ra |
| Single phase transformer | Transformer with skewed three phase output via capacitor 3 x 0-9 Volts, for operating three phase DISTLER model trains, with orig. box | DISTLER | fm | TR0034000 | ra |
| Single phase transformer | Transformer with skewed three phase output via capacitor 3 x 0-9 Volts, for operating three phase DISTLER model trains | DISTLER | fm | TR0035000 | ra |
| Single phase transformer | Multiple output transformer "Lionel Trainmaster" with settable voltages for operating Lionel model trains | LIONEL | us | TR0036000 | ra-lkk |
| Single phase transformer | Single phase encapsulated portable transformer 240 VAC to 6VAC 7A | Stucki | banana plug output | TR0037000 | ra |
| Single phase transformer | Single phase tapped encapsulated
portable separation transformer 110 - 240 VAC to 110
115 120VAC 12A |
Filmo | banana plug output | TR0037500 | ra |
| Single phase transformer | Single phase tapped encapsulated portable transformer 120 - 240 VAC to 5/5.5/6/6.5VAC 5A - originally for powering a soldering iron | ERSA | banana plug output | TR0038000 | ra |
| Single phase transformer | Supply for ELV lighting 230 VAC to 12V 25A - for ELV halogene lamps | Leuenberger | fm | TR0039000 | ra-kü |
| Single phase transformer | Supply for ELV lighting 230 VAC to 12V 25A - for ELV halogene lamps | Leuenberger | fm | TR0040000 | ra-kü |
| Single phase transformer | Double insulated ELV transformer in box with two-pole outlet RUSA3 230 VAC to 24VAC - 50VA | RUSA | do | TR0041000 | al-ku |
| Single phase transformer | Double insulated ELV transformer in box with two-pole outlet RUSA3 230 VAC to 24VAC - 50VA | RUSA | do | TR0042000 | al-ku |
| Single phase transformer | Double insulated ELV transformer in box with two-pole outlet RUSA2 230 VAC to 24VAC - 100VA | RUSA | do | TR0043000 | al-ku |
| Single phase transformer | Separation transformer in box with two-pole outlet RUSA1 230 VAC to 230VAC - 1kVA | RUSA | do | TR0043500 | al-ku |
| Single phase transformer | Double insulated ELV transformer in box with dedicated outlets Type 6100 24VAC 25A | GIFAS | do | TR0044000 | al-ku |
| Single phase transformer | Double insulation separation transformer in box with circuit breakers and outlet ÖBH 2518 230 VAC to 230VAC 2A - 500VA | GIFAS | do | TR0045000 | ra-wk |
| Single phase transformer | Double insulation separation transformer in box with circuit breakers and outlet ÖBH 2518 230 VAC to 230VAC 2A - 500VA | GIFAS | do | TR0046000 | al-k1 |
| Single phase transformer | Block Type ST100/23/24 230 VAC to 24VAC 4.17A - 100VA | BLOCK | ri | TR0047000 | ra-lkk |
| Single phase transformer | Block Type ST100/23/24 230 VAC to 24VAC 4.17A - 100VA | BLOCK | ri | TR0047100 | ra-lkk |
| Single phase transformer | Block Type ST100/23/24 230 VAC to 24VAC 4.17A - 100VA | BLOCK | ri | TR0047200 | ra-lkk |
| Single phase transformer | Block Type ST100/23/24 230 VAC to 24VAC 4.17A - 100VA | BLOCK | ri | TR0047300 | ra-lkk |
| Single phase transformer | Moser K01 230 VAC to 24 VAC 4.2A - 100VA | Moser | bo | TR0047400 | ra-lkk |
| Single phase transformer | Swiss220various 230 VAC to 2x10/12/15 - 100VA | bo | TR0047500 | ra-lkk | |
| Single phase transformer | Laboratory transformer 230 VAC to 16/18/20/23/25/28VAC 250VA | home made | ri | TR0047600 | pr |
| Single phase transformer | LV transformer 220 or 240 VAC to 2x10VAC 7A and 11V 3A, 180VA | ex 01170 bathr | family | TR0047700 | al-fu |
| Single phase transformer | LV transformer 230 VAC to 36VAC 3.2A 100VA | dany | TR0047800 | pr | |

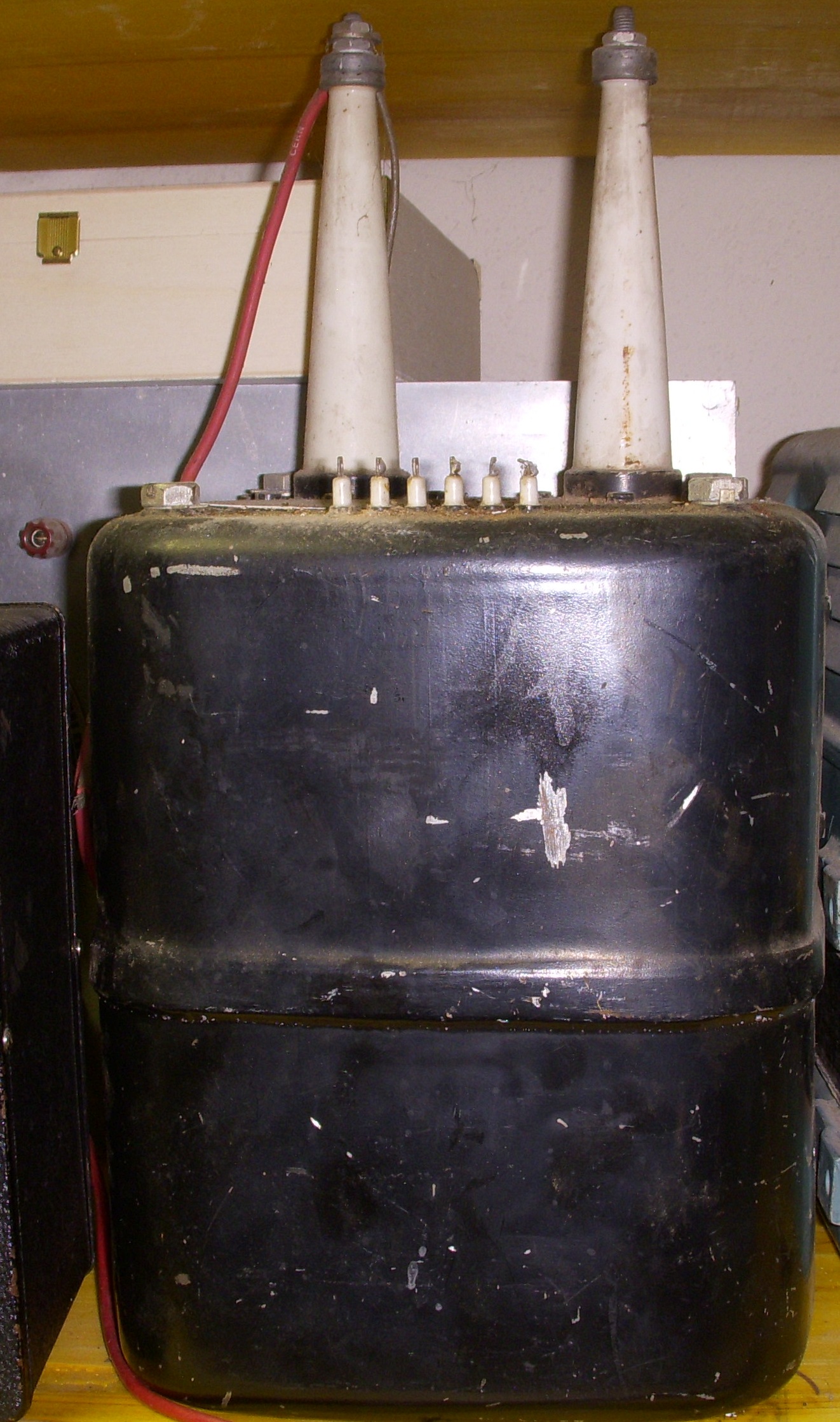

| Single phase transformer | HV transformer 230 VAC to 15kV 20mA for equipment verification | spyse | TR0047900 | sh2 | |
| Single phase transformer | LV transformer mounted into a Feller-plug. 230 VAC to 5VAC for small power application. Current rating unknown. | fm | TR0047950 | pr | |
| Single phase transformer |
Toroidal transformer 80VA 2x115VAC
to 2x33VAC 1A |
krems |
TR0051000 | al-k1 |
|
| Single phase transformer |
Toroidal transformer 80VA 2x115VAC to 2x33VAC 1A to unknown | krems |
TR0051100 | al-k1 |
|
| Single phase transformer |
Toroidal transformer 80VA 2x115VAC to 2x33VAC 1A to unknown | krems |
TR0051200 | al-k1 |
|
| Single phase transformer |
Toroidal transformer 80VA 2x115VAC to 2x33VAC 1A to unknown | krems |
TR0051300 | al-k1 |
|
| Single phase transformer |
Transformer 230-500VAC to 25VAC est. 70VA | krems |
TR0051400 | al-k1 |
|
| Single phase transformer |
Transformer 230VAC to 2x24VAC 1A |
krems |
TR0051500 | al-k1 |
|
| Single phase transformer |
Transformer SBV3005 230VAC to unknown
200VA |
krems |
TR0051600 | al-k1 |
|
| Single phase transformer |
Transformer BV with bridge rectifier and filter 230VACto
40-55VDC_1A |
krems |
TR0051700 | al-k1 |
|
| Single phase transformer |
Transformer Type EE20/10 230VAC to 12VAC 0.5VA |
krems |
TR0051800 | al-k1 |
|
| Single phase transformer |
Transformer Me_Ra_Oy 230VAC to
12VAC 75VA |
krems |
TR0051900 | al-k1 |
|
| Single phase transformer |
Transformer Prototype_500VA |
krems |
TR0052000 | al-k1 |
|
| Single phase transformer |
Transformer "trafomodern" with rectifier and filter 230 or
400VAC to 24VDC 11A |
krems |
TR0052100 | al-k1 |
|
| Single phase transformer |
Transformer unknown 230VAC to t.b.a. |
krems |
TR0052200 | al-k1 |
|
| Single phase transformer |
Transformer May Christe 230VAC to 24V 2A | ce |
TR0052300 | al-k1 |
|
| Single phase transformer |
Transformer Schneider_230V_24V_2A |
ce |
TR0052400 | al-k1 |
|
| Single phase transformer |
Transformer NOLTE_TR5/230V
with foot switch and three 12V safety outlets for small
lamps, max. 36VA |
chkuk |
TR0052500 | al-k1 |
|
| Single phase transformer |
Transformer Separation xformer
with 120V outlets for US connectors |
wza |
TR0052550 | al-k1 |
|
| Single phase transformer |
Gplus Type TE-2012 halogene light transformer
230VAC (orange leads) to 12VAC 1.7A continuous (blue leads) |
family |
TR0052560 | al-fu |
|
| Single phase transformer |
EI130 Type Trenntransformator_220_220_225VA Separation transformer 220/220 |
whw |
TR0052570 | al-fu |
|
| Single phase transformer |
EI130 Type Trenntransformator_220_220_225VA Separation transformer 220/220 |
whw |
TR0052571 | al-fu |
|
| Single phase transformer |
EI130 Type Trenntransformator_220_220_225VA Separation transformer 220/220 |
whw |
TR0052572 | al-fu |
|
| Single phase transformer |
Separation transformer RITTAL1_220_110_1.2kVA in steel cabinet with lockable door |
do |
TR0052600 | ra-m1 |
|
| Single phase transformer |
Separation transformer RITTAL2_220_110_1.2kVA in steel cabinet with lockable door |
do |
TR0052601 | ra-m1 |
|
| Single phase transformer |
Separation transformer RITTAL3_220_110_1.2kVA in steel cabinet with lockable door |
do |
TR0052602 | ra-m1 |
|
| Single phase transformer |
Separation transformer RITTAL4_220_110_1.2kVA in steel cabinet with lockable door |
do |
TR0052603 | ra-m1 |
|
| Single phase transformer |
Safety separation transformer Felisatti_TT-230-230_1300VA in box with CEE connector |
oevg |
TR0052650 | ra-bu |
|
| Single phase transformer |
Auxiliary transformer Siemens_230_110_24_250VA removed from T-368 linear amp |
2wpo |
TR0052675 | ra-bu |
|
| Single phase transformer |
Power transformer Könemann_220_1250_500VA
for linear amplifier anode, installation in Amp-Supply LK500 envisaged |
unkn |
TR0052775 | la-bu |
|
| Higher Frequency and Audio | Power Transformers | ||||
| Single phase transformer for power inverter | 127VAC symm.173 Hz to 370VAC (YLVA spare) | Besson | ce | TR0050000 | sh2 |
| Audio | interstage, output and modulation transformers | ||||
| Push-pull output transformer | Millroux 6500Ohms CT to 2-4-8-16 Ohms speaker winding at 40 Watts | Millroux | 01 | TR0060000 | al-we |
| Auto | transformers | ||||
| Three phase autotransformer | Lager 8 kVA/1kVA Auto/Separation transformer 480/440/400VACauto and 230VAC 1 KVA isolated | ri | TR0070000 | al |
|
| Three phase autotransformer | Lager 8 kVA/1kVA Auto/Separation transformer 480/440/400VACauto and 230VAC 1 KVA isolated | ri | TR0071000 | al |
|
| Three phase autotransformer | 8 kVA 3 phase Autotransformer 400VAC to 230VAC 50% duty cycle; winding arrangement changed for 230V to 230V separation transformer using the inner 400V winding as primary and the outer two, after changing one flux direction, in series as secondary. Available power 2500VA. | ri | TR0072000 | pr-cav2 | |
| Three phase autotransformer | 30 kVA autotransformer, also suitable for other purpose. See description of windings and ID plate | Huber | Beinwil | TR0073000 | al |
| Single phase autotransformer | Unknown type ACD 220V to 120V 0.4 kVA autotransformer | family | TR0074000 | bak | |
| Single phase autotransformer | SITAR type ACD 220V to 120V 0.4 kVA autotransformer | SITAR | leb | TR0075000 | al |
| Single phase autotransformer | Type 100 220V to 120V 0.1 kVA autotransformer with US-outlets | wgl50 | TR0076000 | al | |
| Single phase autotransformer | Type SABIR 220V to 120V 2 kVA autotransformer for SCR-399 in box | phil | TR0077000 | al |
|
| Single phase autotransformer | Type LOYJE 220V to 120V 500VA autotransformer | LOYJE | fm | TR0078000 | al |
| Single phase autotransformer | Type LOYJE 220V to 120V 300VA autotransformer | LOYJE | fm | TR0079000 | al |
| Single phase autotransformer | Type LOYJE 220V to 115V 100VA autotransformer | LOYJE | fm | TR0080000 | al |
| Single phase autotransformer | Type 75A1 220V to 120V 0.1 kVA autotransformer with US-cable/outlet | GI | TR0081000 | al |
|
| Single phase autotransformer | Type bo_rotor 220V to 120V 0.1 kVA autotransformer with US-cable/outlet | bo | TR0082000 | al |
|

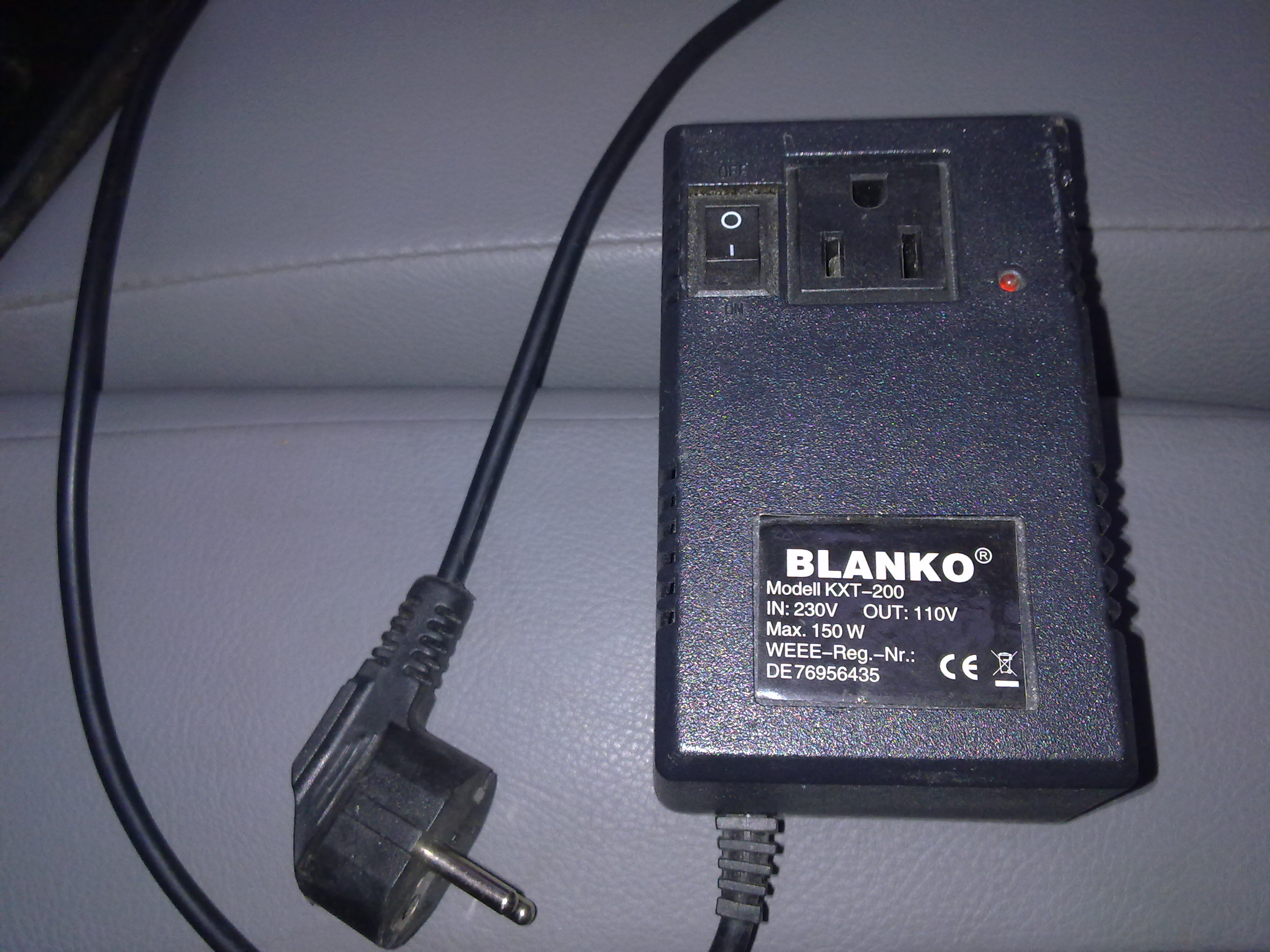

| Single phase autotransformer | Type BLANKO type KXT-200; 230V to 120V 0.15 kVA autotransformer with US-cable/outlet | f6jti | TR0082500 | al |
|
| Variable | transformers | ||||
| SITAR type SD 2,2 P 0,8 Survolteur | Step settable autotransformer in box, 80VA, input 220VAC, output 196-246VAC | SITAR | leb | TR0090000 | pr |
| VARIAC 0-230VAC | Double slider settable autotransformer (VARIAC) in box, max. 5A per slider | ti | TR0091000 | ra-lkk |
|
| VARIAC 0-22VAC | Settable transformer (VARIAC) in box with connectors and fusing, 0-22V 1.5 A | ti | TR0092000 | ra-lkk |
|
| VARIAC 220-8 | Settable autotransformer (VARIAC), 230 VAC to 0-260 VAC 8A | bo | TR0093000 | pra | |
| VARIAC 400-16 | Three phase settable autotransformer (VARIAC), 400 VAC to 0-400 VAC 16A | ecarn |
TR0093100 | al | |
| VARIAC 400-2 | Three phase settable autotransformer (VARIAC), 400 VAC to 0-400 VAC 2A | spyse |
TR0093200 | ti | |
| TR200S | Variable transformer (VARIAC), 230 VAC to 0 - 16 VAC 1A | ri | TR0094000 | al |
|
| ESDO | Variable transformer 230 VAC to 0 - 16 VAC 2A | jogi | TR0095000 | al |
|
| RUHSTRAT RTKE 9790/8 |
Variable autotransformer 230 VAC to 0 - 230 VAC 0.8A | krems |
TR0096000 | al-k1 |
|
| Unknown supplier |
Variable transformer with galvanic separation, fully metered 230 VAC to 0 - 230 VAC 1.2A | kaheiho |
TR0097000 | ra-lkk |
|
| Magnetically | stabilised transformers | ||||
| Stabilisation transformer KE 1957 | Classic sinusoidal stabilisation ensemble using a
parallel LC supplied by a multi-tap transformer, input 160
to 240VAC 50Hz, output 220VAC stabilised at 1A max.
current. |
family | TR0100000 |
al |
|
| Stabilisation transformer VOLTAM | Voltam three leg transformer in 60-design case, input 190VAC to 240VAC, output 230VAC stabilised, further data unknown. Output Italian plug 3-in-line | dany | TR0101000 |
al |
|
| Transformer, magnetically stabilised | Three leg transformer, input 230 VAC +/- 20%, output 230VAC max. 4A, sinusoïdal to 1% accuracy | family | TR0102000 |
al |
|
| Transformer, magnetically stabilised | Three leg transformer, input 230 VAC +/- 20%, output 117VAC max. 1A, sinusoïdal to 1% accuracy | family | TR0103000 |
ra-lkk |
|
| Transformer type MDS II | Three leg transformer, input 230 VAC +/- 20%, output
12VAC stabilised via multiple 1A and 2A windings at 150VA
total power, 5.5µF capacitor required |
family | TR0104000 |
al |
|
| ELGAR 6000B
2011 |
Line conditioner 1kVA | krems |
TR0105000 |
al-k1 |
|
| Chokes | with iron core | ||||
| Power choke ??H 11A | gap choke with flat conductor winding | TR0200000 |
pr |
||
| Differential Power choke 2x40A | Type YLVA spare choke | Besson | ce | TR0201000 |
sh2 |
| Electrics | Distribution, Controlling, Protection | ||||
| BACO NBA-040-4-300G | 4-pole differential protection switch 40AAC, fault current 300mAAC | EL0100000 |
al |
||
| Pilz P1E 1SK | Ground fault relay for insulated circuits, single contact for impedance <10kΩ | EL0200000 |
al |
||
| Turck MS1-33 | 3 switch amplifiers, supply 230VAC, input = 8mA switching links with inherent protection, output = 3-relay contacts for 1 Amp | EL0300000 |
al |
||
|
|
|||||
| Three phase | motors/generators | ||||
| Asynchronous motor | Moll type B3-22 22kW or 26.4kW, 2940 rpm @ 50Hz or 3640 rpm@ 60Hz, B3 with 160mm shaft height | Moll Austria | Kainz_Stainz | MT0002000 |
al-sh5 |
| Asynchronous motor | Worm drive motor, 2 kW, 1500 rpm geared down to 25 rpm, with coupling flange | Leroy | droë | MT0003000 |
ch |
| Synchronous motor | 12 kVA 1500 rpm with open shaft | KATO | ce | MT0005000 |
ch |
| Synchronous generator | Self regulated, 380V 3 KVA | BBC | thun | MT0012000 |
ch-ichabod |
| Asynchronous motor | Blower motor for kitchen ventilation hood (wahl) | ?? | wahl | MT0013000 |
al-we |
| Synchronous generator | 100kVA 400/231V Siemens-Schuckert (coupled to SGP diesel) | Siemens | Emm | GE0005500 | al-im |
| Single phase | motors/generators | ||||
| Synchronous generator | self regulated generator 220V 2 KVA | Still | altler | MT0011000 |
al |
| Synchronous generator | self regulated generator 220V 3 KVA | BBC | ruag | MT0014000 |
al |
| DC & other | motors/generators | ||||
| DC motor | Gear drive motor 120 V | ce | MT0006000 |
al |
|
| DC motor | Gear drive motor 48 V | ce | MT0007000 |
al |
|
| DC motor | Motor 24V 50A 1000 rpm | ce | MT0008000 |
al |
|
| DC motor | 6 kW 220V 3000 rpm | zirl | MT0009000 |
al |
|
| DC generator | 14V regulated DC generator max. 90 Amp, with regulator | family | MT0010000 | al |
|
| DC generator | 14V DC generator max. 110 Amp | schull |
MT0017000 | al-ku |
|
| DC motor | dynamo and alternator test stand | family | MT0015000 | al-we |
|
| AC/DC converter |
Rotary converter from 400VAC 3ph to 400VDC 64Amps |
Blocher Metzingen |
markusr |
MT0016000 |
dl75 |
| Rotary converter ELIN_Schorch 19xx |
Rotary converter from 400VAC 36A 3ph to 70V 300Amps for arc welding purposes, patent ELIN-Schorch,
ELIN type ADR 2206 with built-in manual 3 position start-up switch (star series, star parallel, delta) |
ELIN Weiz |
ehm |
MT0016500 |
al-sh4 |
| DC generator |
Three phase generator with attached rectifier and
regulator, 28VDC 75A |
Bosch |
schull |
MT0017000 |
al-ku |
| DC motor |
24VDC 4kW starter motor for trucks |
Bosch |
schull |
MT0018000 |
al-ku |
| Current | transformers | ||||
| please consult | Measurement Apparatus Collection
|
|
Radio Collection,
Aerials and Accessories,
Electron Tubes,
Power Converters,
Generators and Traction Batteries,
Transformers,
Telegraph Collection,
Audio Material Collection,
Measurement Apparatus Collection
